Conveyor Belting

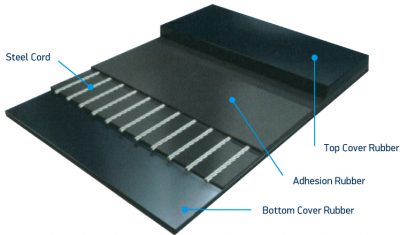

I. Steel Cord Conveyor Belt

Steel Cord

Steel Cord Properties

No.

Belt Strenght

Belt Width

Feature

1.

ST 630 to ST 5400

60mm to 2600mm

1. Low Elongation
2. High tensile Strenght
3. Small diameter for drive pulley
4. High adhesion between rubber and steel cord
5. Good trough ability
6. Heavy load transportation

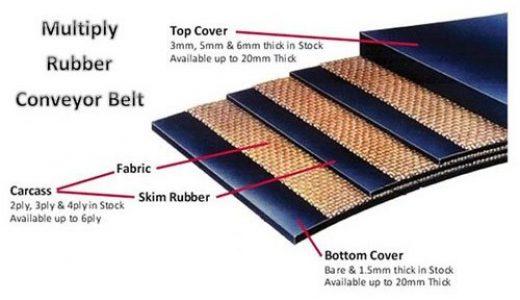

II. Fabric Conveyor Belt

Fabric belt

Fabric Type and Properties

No.

Fabric Type

Tensile/Ply

Belt Width

Feature

1.

Nylon Fabric
Nylon - Nylon
( NN )

NN 80 to NN 630

300 mm to 2600 mm

1. High abrasion resistance
2. High tensile strength
3. Good fatique resistance
4. Good shock resistance
5. Good trough ability
6. High adhesion between plies
7. Splendid flexibility and long working life

2.

Polyester Fabric
Polyester - Nylon
( NN )

EP 80 TO EP 630

300mm to 2600mm

1. Long elongation in warp
2. Good trough ability
3. Good water resistance
4. Good wet resisrance
5. No mold it is suitable for medium
6. Long distance
7. Heavy load transportation

SPECIAL CARCAS

3.

Cotton
Cotton - Cotton
( CC )

CC-56

300mm to 2600mm

1. Good in chemical fastening
2. Elongation in relatively flow
3. Good adhesion with rubber
4. Small distortion under high temperature
5. Suitable for short distance and light
6. Load transportation

4.

Polyester Cotton
Polyester - Cotton
( TC )
Upgrade of cotton conveyor belt

TC-56

300mm to 2600mm

1. Better shock resistance
2. Especially the belt body is thinner and lighter
3. Can reduce energy
4. Short distance and medium load

Conveyor System

Roller and Pulley
